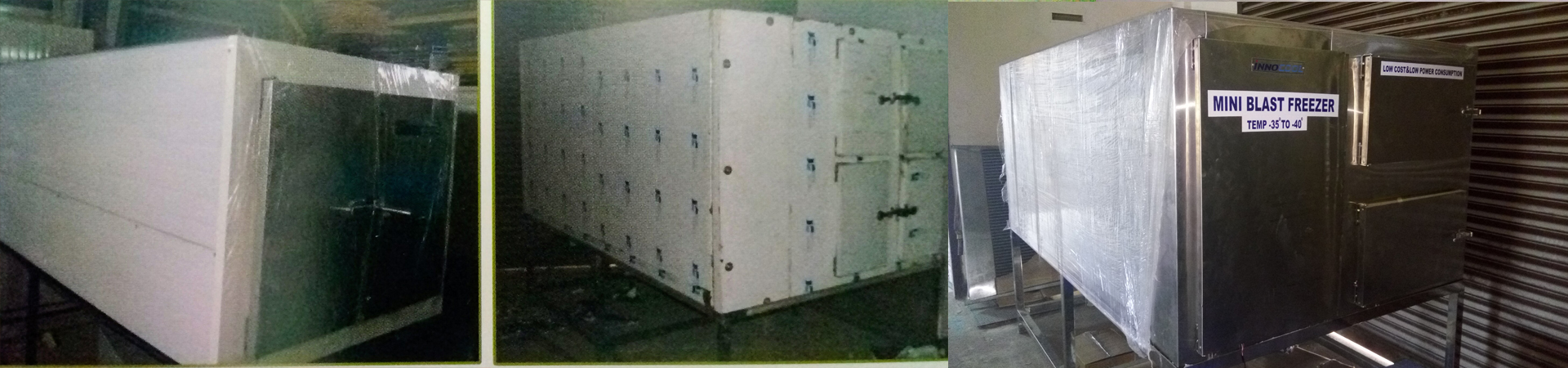

The enclosure cabinet should be well finished and made of PUF panels. The minimum dimensions should be 8ft (L) X 4ft (W) X 4ft (H).
Operating Temperature Range: -35 ºC
THE DOOR:
The door should be single, small hinged, side swing type, left & Right hand opening, one service door
PUF PANEL SPECIFICATION:
a. Insulation Core thickness for 150 mm PUF insulation with Density 40 +/-2 kg/m3
b. Inner skin Of the panels have min. 0.5mm thick pre coated / painted GI sheet steel
c. Outer skin Of the panels have min. 0.5mm thick pre coated / painted GI sheet steel
d. Panel joining will be Auto lock
e. Sealing will be done by Silicon sealant by pressure gun with Pop up Rivet.
TECHNICAL SPECIFICATIONS:
S.No
SPECIFICATION
DESCRIPTION
1
PUF PANEL THICKNESS
150MM
2
INTERNLA LOAD
100 GEL PACKS OR 1000 KGS OF CHOCO BAR
3
NO. OF DOOR OPENINGS
20 PER DAY
4
MAX. AMBIENT TEMPERATURE
+50 ºC
5
TEMPERATURE REQUIRED
AS PER THE APPLICATION (UP TO -40 Deg C)
6
REFRIGERANT
R404 A
7
COMPRESSOR
HERMETIC /SEMI-HERMETIC COMPRESSOR
8
TEMPERATURE CONTROLLER
DIGITAL DISPLAY THERMOSTAT WITH CONTROL PANEL
9
DRAIN
THE INDOOR UNIR DRAIN HAS TO BE CONNECTED TO THE NEAREST DRAIN POINT WITH NECESSARY PIPING PROVIDING PROPER SLOPE.
10
MINIMUM DIMENSION
8 FT (L) X 5 FT (W) X 5 FT (HT)
APPLICATIONS:
ICE CREAM, CHOCOBAR, FROZEN FOOD PRODUCTS AND GEL PACKED IN PHARMACEUTICALS.
