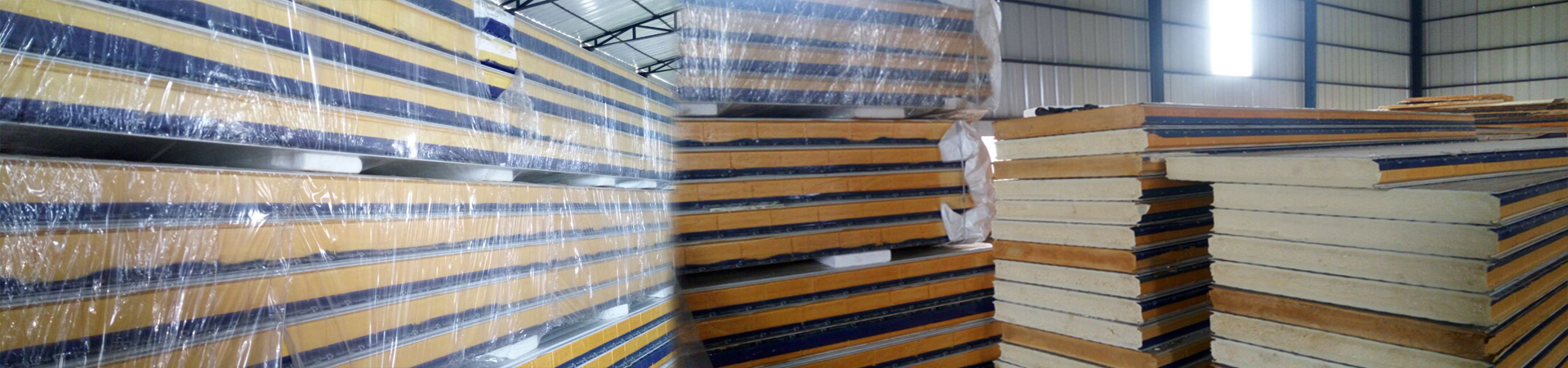

These panels are modular in nature and pre fabricated sandwich type CFC Free panels. The panels consists of two outer skins with an inner insulated core made up of self extinguishing Rigid - Polyurethane Foam with high insulation co-efficient of 60 -80 -100 -120 -150 -165-200mm thickness having width of 1000mm and length up to 12500mm for Chiller , Freezer Blast Freezer applications.
TECHNICAL SPECIFICATION
S.No
ATTRIBUTES
DESCRIPTION
1
DENSITY
40 +/- 2 KG/M3
2
INSULATION CORE
MADE OF RIGID POLY URETANE FOAM
3
K VALUE OF INSULATION
0.35 W/SQ.M/K
4
THERMAL CONDUCTIVITY
0.023 W/SQ.M/K
5
COMPRESSIVE STRENGTH
2.1 KG/SQ.M (0.1 TO 0.3 N/SQ.M)
6
TENSILE STRENGTH
3.7 KG/SQ.M
7
ADHESIVE STRENGTH
2.9 KG/SQ.CM
8
BENDING STRENGTH
2.9 KG/SQ.M(0.1-0.3 N/SQ.M)
9
PUF TO STEEL
0.-0.5 N/SQ.M
10
THICKNESS OF OUTER SHEETS
0.5 MM( MIN)
11
MATERIAL OF OUTER SHEETS
PRE COATED GALVANIZES SHEETS( PCGI),
STAINLESS STEEL 304 (FOOD GRADE), FRP WITH THREAD.
