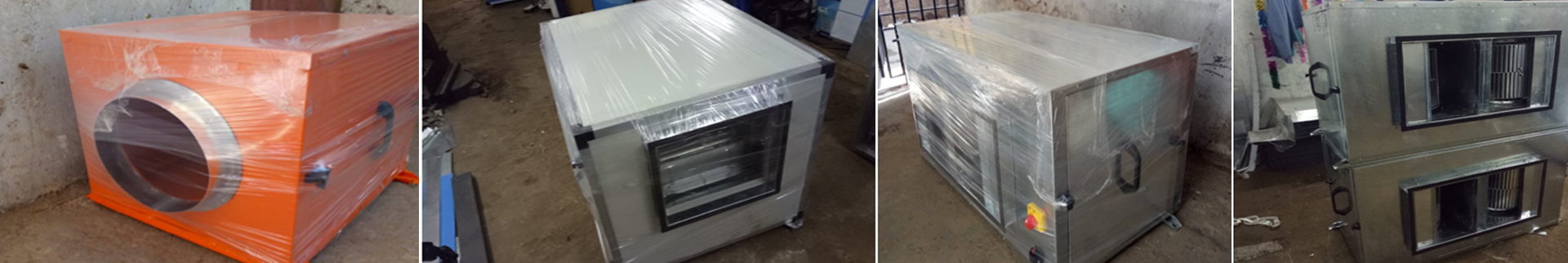

Single Skin Air Handling Units:

Pace make Single Skin Air Handling Units with 16/18G G.I./CRCA powder coated sheets panels, High/Low static pressure blowers, Pre and HEPA filters according to requirement.

Fan section is having multivane forward/backward curved centrifugal blowers mounted on tabular shaft which runs in ball bearing. Impeller if fan is dynamic balanced for silent and vibration free performance.

Filter section is having easy fitting arrangement to fit HDPE filters as per sizes required also provided maintenance door for filter cleaning and maintenance work.

Double Skin Air Handling Units:

Pace make Double Skin Air Handling Units with 22/24G G.I. pre coated/ powder coated sheets panels with 25mm thick PUF insulation, High / Low static pressure blowers, CHW coils, Pre and HEPA filters according to requirement. AHU’s are provided Inspection and maintenance doors for DOP test of HEPA filter, Filter cleaning etc.

Fan section is having multivane forward/backward curved centrifugal blowers mounted on tabular shaft which runs in ball bearing. Impeller if fan is dynamic balanced for silent and vibration free performance.

Filter section is having easy fitting arrangement to fit HDPE Pre, Fine and HEPA filters as per requirement of the system and also provided maintenance door for filter cleaning and maintenance work.

Coil section is designed as per the size of the DX/CHW coil required for the system. Surrounding part of the coil inside the AHU is fixed with G.I. sheets. Coil tray is fabricated in S.S. 304 from inside and G.I. sheet from outside with insulation.
